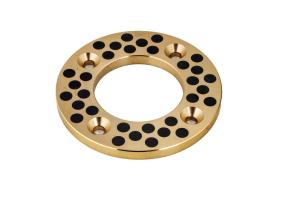

Oilles #500 SPW & Spwn WasherSolid Lubricant Bearings / Sobw & Sobwn Washer
* Solid Lubricating Bearing, Material: Bronze Alloy SO#50SP2 + Graphite
* Description:
Material: Bronze Alloy SO#50SP2 + Graphite
Hardness: >250HB
Self-lubricating & Maintenance-free
* Features
High load capacity, very good wear and abrasion resistance, moderate corrosion resistance, hardened mating material favorable. Special suitable for toggle mechanism bushing in injection molding machines.
* Possible Application
The product is widely used in ctontinuous casting rolling machine, mining machinery, shipping machinery, turbine, injection machinery, auto mould and so on.
* Available Types
Cylindrical bush, flanged bush, washer, strip...
* Standard Parts
SPW-0603 SPW-0803 SPW-1003 SPW-1203 SPW-1203N SPW-1303 SPW-1403 SPW-1503 SPW-1603 SPW-1603N SPW-1803 SPW-2005 SPW-2505 SPW-3005 SPW-3505 SPW-4007 SPW-4507 SPW-5008 SPW-5508 SPW-6008 SPW-6508 SPW-7010 SPW-7510 SPW-8010 SPW-9018 SPW-10010 SPW-12010 SOBW-10 SOBW-12 SOBW-13 SOBW-14 SOBW-15 SOBW-16 SOBW-18 SOBW-20 SOBW-25 SOBW-30 SOBW-35 SOBW-40 SOBW-45 SOBW-45A SOBW-50 SOBW-55 SOBW-60 SOBW-65 SOBW-70 SOBW-75 SOBW-80 SOBW-90 SOBW-100 SOBW-120 SOBWN-10 SOBWN-12 SOBWN-16 SOBWN-20 SOBWN-25 SOBWN-30
1.The solid casting bronze material is ideally suited for highly demanding applications in tough environments. We offer a standard assortment of plain sleeve bushings, flanged bushings and sliding plates in accordance with ISO 4379 and DIN1850.
2.The solid bronze body can be drilled holes and filled solid graphite lubricant, in this way it can be used in oilless environments.
3.Also the solid bronze body can be machined oil grooves and holes, it can get better lubricating after filled with grease.
1.Insensitive to dirty environment
2.Resistant to shock loads and vibrations at slow speeds
3.Enable operation with a poor shaft surface finish
4.Good resistance to corrosive conditions
Solid Bronze bushings and plates are made completely of tin bronze, CuSn10P, which has very good machine ability. All surfaces of the solid bronze bushings are machined.
Solid iron bushings and plates are made in same way of bronze material, but it is much lower costs if you are not in high performance requirements.
1.Construction machinery
2.Transport equipment
3.Pulp and papermaking machinery
4.Off-shore equipment
| Material |
Base Bronze |
500SP: CuZn25Al6Fe3Mn3 |
| SL2 |
Solid Graphite lubricant |
| Density |
|
8.2g/cm3 |
| Tensile Strength |
|
>=755N/mm2 |
| Anti-compact Tenacity |
|
>=400~500KJ/m3 |
| Hardness |
|
>=200HB |
| Max Load Pressure |
|
100N/mm2 / 120N/mm2(500SP120) |
| Speed Limit |
|
0.5m/s |
| PV value limit |
|
1.65N/mm2.m/s |
| Friction coef |
Oil Lubrication |
0.03 |
| Dry Friction |
0.16 |
| Working temperature |
|
-50~+300°C
|
